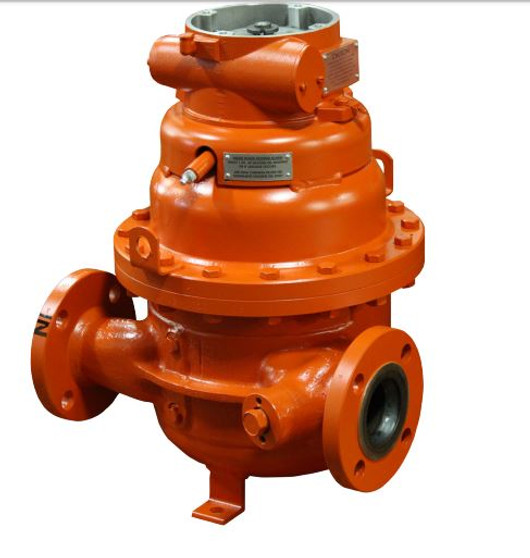

The Smith Meter Model C2 Meter is a 2", double-case,
straight-through (S1 through S7), rotary vane type, positive
displacement meter. Applications include: blending, batching,
dispensing, inventory control, and custody transfer of oils,
solvents, chemicals, paints, fats and fertilizers.
• Superior Accuracy – The Smith Meter®
Rotary Vane Meter principle, combined with
the meter’s uniquely designed (offset) inlet
and outlet nozzles, minimizes pressure drop
across the measuring chamber, which reduces
flow through the meters' clearances to maximize
accuracy.
• Low Pressure Drop – Streamlined flow path
provides low pressure drop.
• Positive and Accurate Registration – High
torque drive calibrator with adjustment in 0.05%
increments ensures accurate registration.
• Long Service Life – Low friction ball bearings,
fixed cam-type timing, and rugged construction
give sustained accuracy and long service life
